• *Brand:Baite
• *Color:Multi Color
• *Voltage:22V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

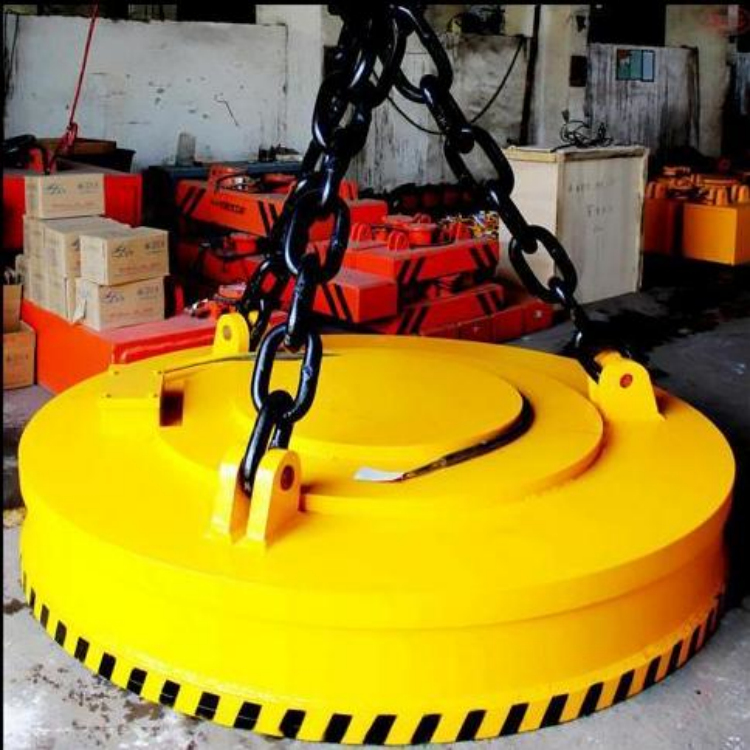

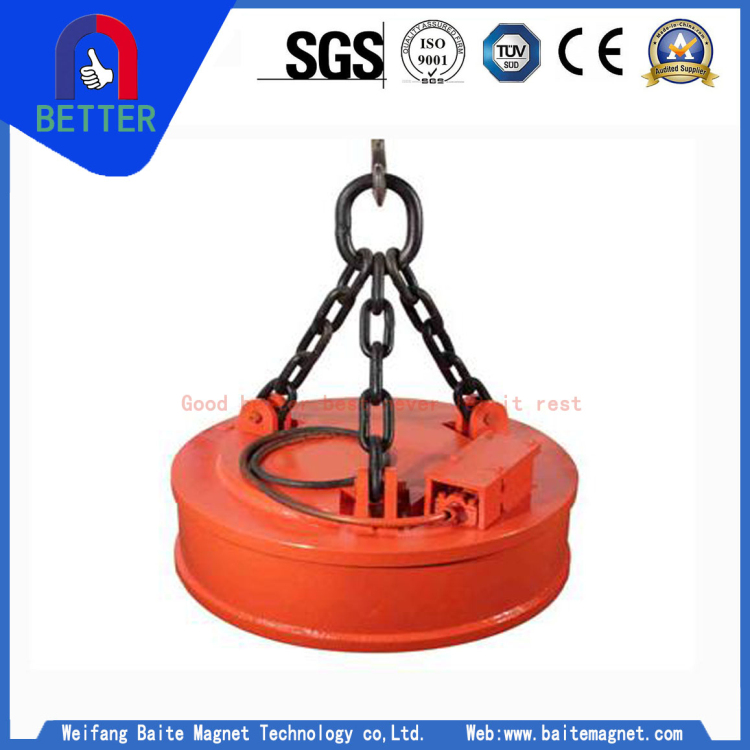

Introduction

This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.The insulation grade can reach class special C.It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.With simple structure reliability, it is suitable for working with all kinds of lifting equipment.

 Features

The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.

The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.

Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.

High lifting capacity, light self-weight.

Low power consumption, long service life.

 Working Principle

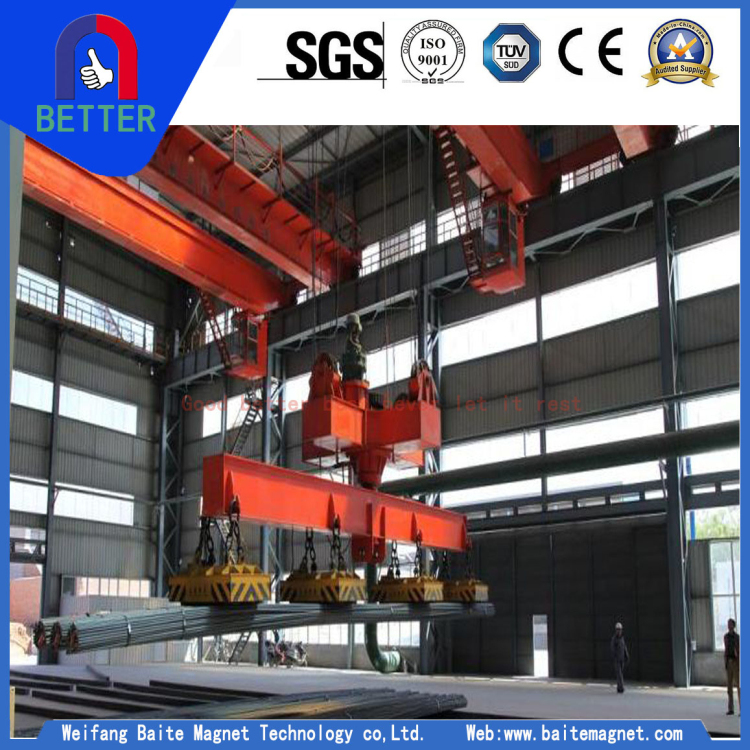

Product application covers coal coal preparation, coal power plants, metallurgy, steel, metal, mine, cement, building materials, petrochemical industry, shipbuilding, port transportation, brick, ceramics, glass, paper making, grain and oil food and railway logistics and other industries.

When inserted into the core within the electric solenoid, magnetized iron core is energized solenoid magnetic field. After magnetization of the core also became a magnet, such as two magnetic field overlay each other, so that the solenoid magnetic greatly enhanced. In order to make the magnet magnetic stronger, usually will iron core made of horse shoe. But beware horseshoe iron core coil around the opposite, clockwise and the other side must be counterclockwise. If the round to the same, two coil magnetization effect of iron core will cancel each other out, doesn't make the iron core is magnetic. In addition, the magnet with soft iron core, and cannot be made from steel. Otherwise once the steel after being magnetized, keep long-term magnetic rather than demagnetization, it can't be used on the strength of the magnetic current to control the size of the, and lose the advantages of lifting electromagnet is due.
