• *Brand:Baite
• *Color:Multi Color
• *Voltage:220V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

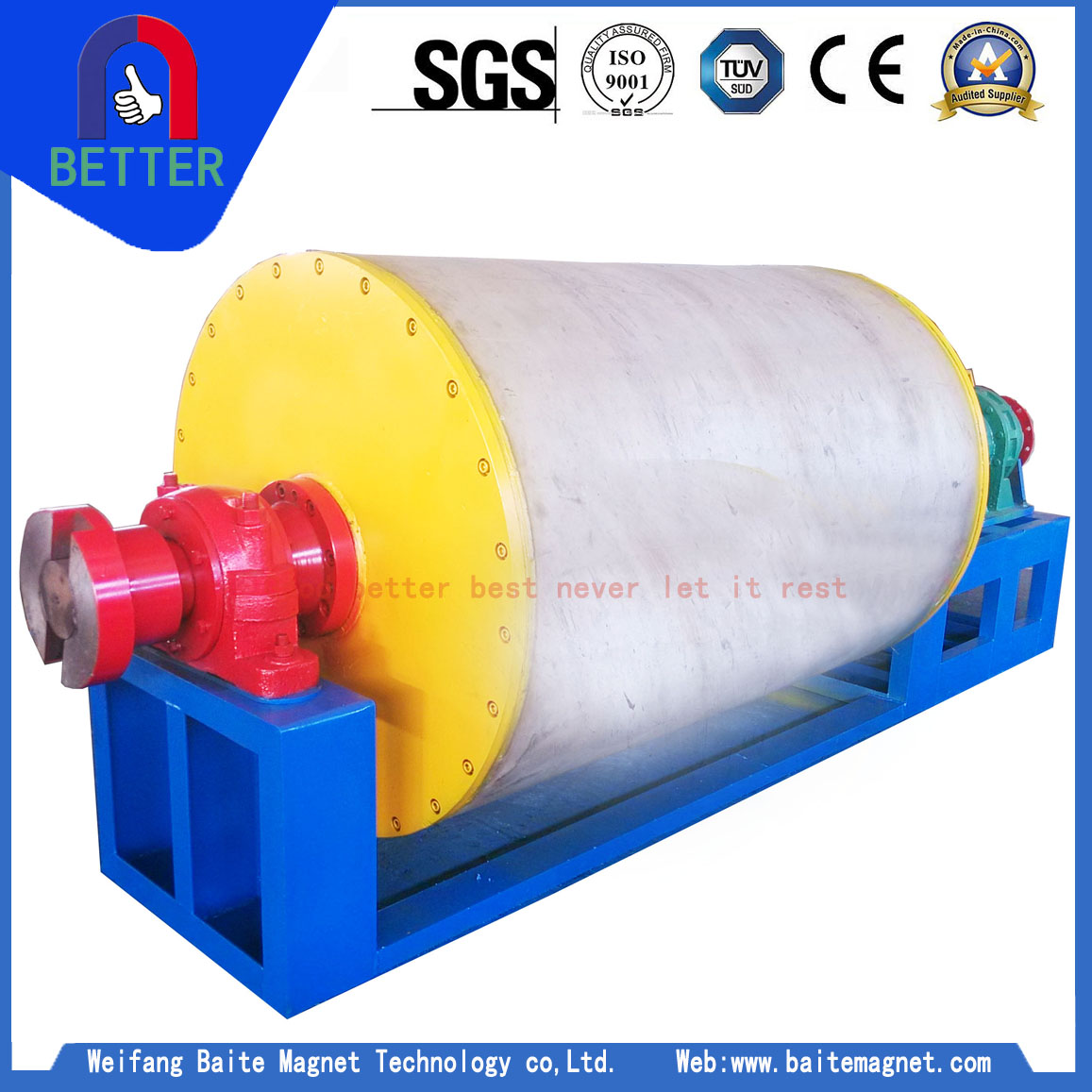

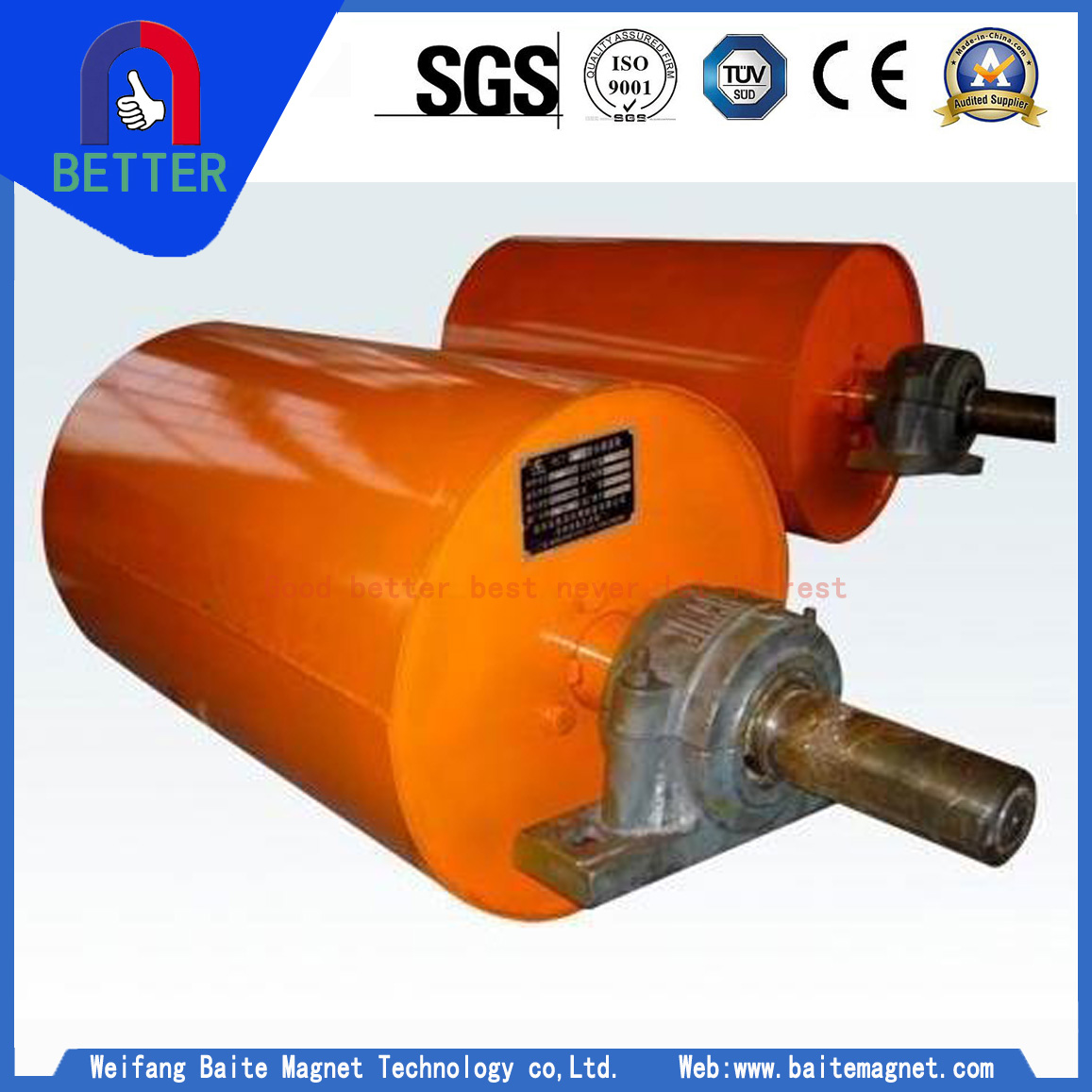

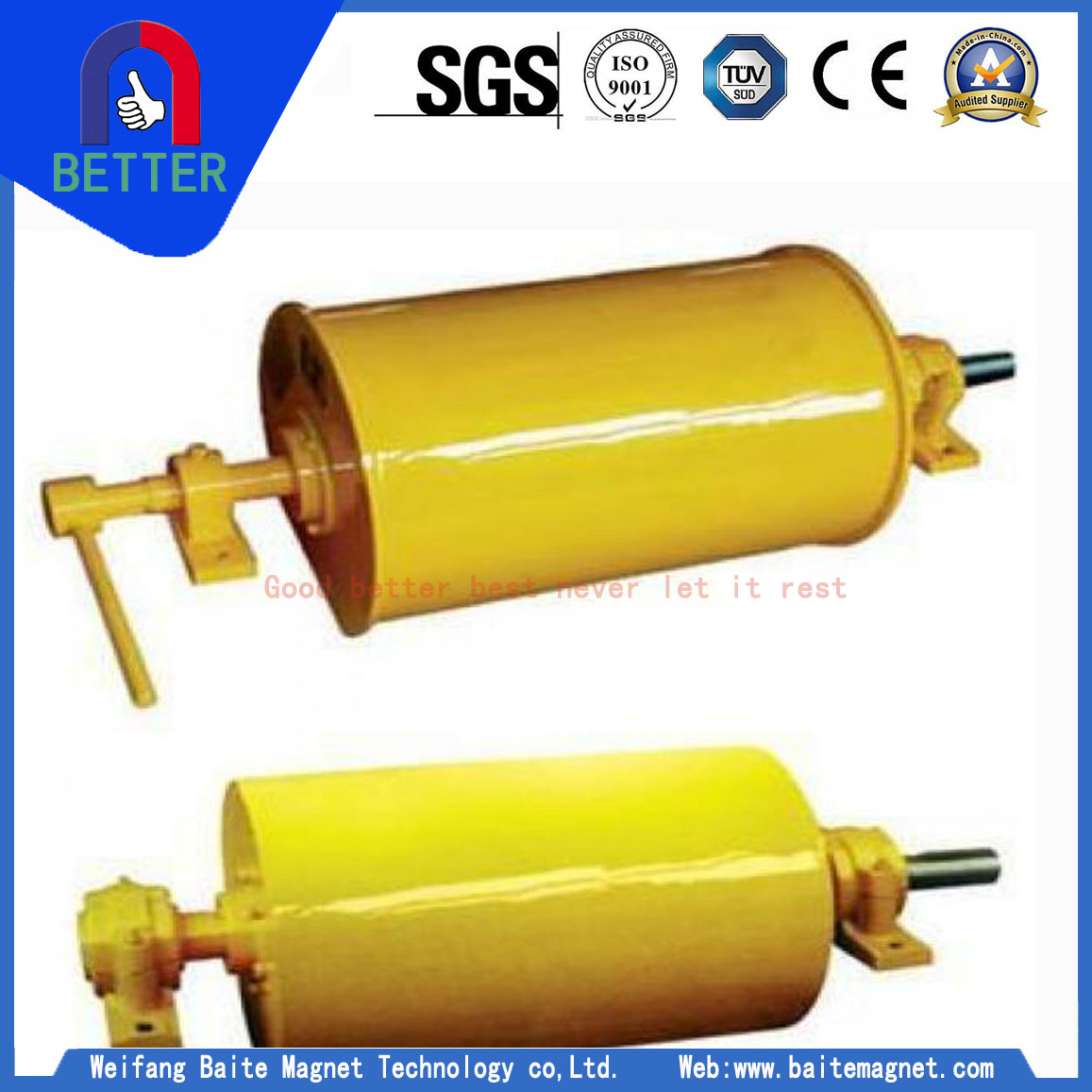

Magnetic Pulleys provide continuous protection against Tramp Iron contamination of both large  tramp iron and fine metal particles.

Technical Festure

o Used in the recycling, powder/bulk, mining and quarries for separation of tramp iron.

o They can be used as drive head pulleys or tail pulleys on belt conveyors.  They provide maximum, continuous protection against tramp iron contamination, for downstream machinery and product purification of processed materials.

o These easily installed units provide permanent magnetic strength and require no maintenance. Magnetics are Permanent ceramic, but there are instances, where having to alternate conveying material that is magnetic, but should not be separated, requires an electro magnetic pulley.  These too are available.

o Pulleys are available in diameters of 4", 6", 8", 10”, 12", 14”, 15", 16", 18", 20”, 24”, 30”, 36”, 42” and 48”.  Width of the pulley, shaft diameter and length are based on customer’s requirements.

o Shafts are normally welded-on 4”, 6”, 8” and 10” models, but can be fitted with hubs and bushings of choice as an option.  All other sizes, XT Hubs and Bushings are standard.  Other type hubs are optional.

o Vulcanized rubber lagging and stainless steel shafts are optional.

Technical Parameters

<td width="21" valign="center" style="padding: 1px 1px 0px; border-width: 1px; border-style: solid;

NO.	Model	Magnetic induction intensity of the drum surface       (GS)	Material depth（≤mm）	Belt speed（m/s）	Weight（kg)	Appearance size(mm)
						A	B	DΦ	L	L1	K	dΦ	h	b
1	RCT-32/40	1500-3000	40	≤2.5	150	728	400	320	500	926	100	45	48.5	14
2	RCT-32/50	1500-3000	60		198	850	500	320	600	1097	115	50	53.5	14
3	RCT-40/50	1500-3000	80		250	850	500	400	600	1097	115	55	60	16
4	RCT-50/50	1500-3000	100		370	850	500	500	600	1097	115	55	60	16
5	RCT-32/65	1500-3000	70		245	1000	650	320	750	1280	135	65	69	18
6	RCT-40/65	1500-3000	100		405	1000	650	400	750	1280	135	65	69	18
7	RCT-50/65	1500-6000	130		520	1000	650	500	750	1280	135	70	76	20
8	RCT-50/80	1500-6000	130		610	1300	800	500	950	1580	135	70	76	20
9	RCT-65/80	1500-6000	130		720	1300	800	650	950	1661	175	70	76	20
10	RCT-80/80	1500-6000	150		980	1300	800	800	950	1661	175	90	76	24
11	RCT-65/100	1500-6000	130		910	1500	1000	650	1150	1861	175	90	97	24
12	RCT-80/100	1500-6000	170		1200	1500	1000	800	1150	1954	Related Product Australia Recovery Magnet... We are the professinal mabufacturer for mining equipment.The product is specially designed for heavy... High Gradient Magnetic Se... HIGH GRADIENT MAGNETIC SEPARATOR Drum Magnetic separator F... Model:CTS/B/N Permanent Magnetic Roller Separator CTS permanent-magnet drum separator is designed b... High Intensity Dry Magnet... CTG dry selection special magnetic separator is a new type of dry - selecting equipment designed for... Copyright © 2018 Weifang Baite Magnet Technology co.,Ltd. Baite links   |   links Quick links: Crusher manufacturers,Screen manufacturers,Feeder manufacturers,Magnetic Separator manufacturers,Electromagnetic separator manufacturers,Permanent magnetic separator manufacturers,Gold dredge manufacturers,Gold mining equipment manufacturers,Jaw crusher manufacturers,Magnetic separating machine manufacturer,Gravity separating machine manufacturer,Stone crusher manufacturer,Roller Crusher manufacturer,Ring Hammer Crusher manufacturer,Reversible Blockless Fine Crusher manufacturer,New Type Fine Crusher manufacturer,Hammer Crusher manufacturer,Mobile Crusher manufacturer, Emulsion paint machine manufacturer, Generator set manufacturers, Magnet manufacturers, Corn milling machine, Eyelash vendors wholesale, eyelash extendsions suppliers, Beer brewing equipment, Candle manufacturers china, Home About Us News Products Solution Process Flow Feedback Contact Us
